Quarterly WHOIS Database Reference Manual

Our Whois Database Downloads provide archived historic whois databases in both parsed and raw format for download as database dumps (MYSQL or MYSQL dump) or CSV files. Each database contains exactly one whois record per domain name.

There are separate databases for geneirc top-level domains (gTLDs), and country-code top-level domains (ccTLDs). In each quarter a new database release is issued for both types. The release dates are 1 March, 1 June, 1 September, and 1 December each year. Database releases are identified with a version number in the format of a letter “v” followed by a number. The numbers are incremented upon each release. Note that the version number of the gTLD and ccTLD databases are different. As an example, below we tabulate 5 subsequent releases of gTLD and ccTLD databases:

A database is thus uniquely identified by the type of the TLDs (gTLD, ccTLD) and the version number, e.g. "gTLD v41".

New releases are announced via WhoisXML API's system for technical announcements, which is briefly documented here:

https://www.whoisxmlapi.com/tech_announce

At the moment there is an RSS feed and a JSON file with a list containing entries announcing events related to various events related to WhoisXML API products.

As an example, the JSON entry, appearing upon This example gives the appearance Quarterly gTLD WHOIS database v53 release which happens at 2025-09-01T19:35:24Z, reads

{
  "announcedDateTime": "2025-09-01T19:35:24Z",
  "details": {
    "scope": "gtld",
    "dbversion": "v53"
  },
  "eventDateTime": "2025-09-01T19:30:00Z",
  "eventType": {
    "eventType": "released",
    "id": 1
  },
  "id": 3387,
  "product": {
    "id": 1,
    "product": "Quarterly WHOIS Database Downloads"
  }
}

The product ID of quarterly database downloads is 1, and the relevant event types are

Thus it is possible to get informed on the release or an update of quarterly releases by polling the JSON file. Alternatively, the RSS feed contains entries with the same information as the JSON entries.

By a “supported top-level domain (TLD)” it is meant that obtaining WHOIS data is addressed by the data collection procedure, and thus there are WHOIS data provided. (In some cases bigger second-level domains (SLDs) are treated separately from their TLDs in the data sources as if they were separete TLDs, hence, we refer to these also as “TLDs” in what follows.) The set of supported TLDs can vary in time, thus it is specified for each quarterly database version or day in case of quarterly and daily data sources, respectively. See the detailed documentation of the data feeds on how to find the respective list.

If a TLD is unsupported, it means that the given data source does not contain WHOIS data for the given TLD. There are many for reasons for which a domain is unsupported by our data sources; typically the reason behind is that it does not have a WHOIS server or any other source of WHOIS data or it is not available for replication for technical or legal reasons. A list of TLDs domains which are constantly unsupported by all feeds is to be found at

For these domains we provide a file limited information that include just name server info in certain data sources; notably in quarterly feeds.

As of the list of supported TLDs, these are listed in auxiliary files for each data source separately. See the documentation of the auxiliary files for details.

Effective TLDs are public suffixes (domains in which it is or was possible to directly register names) which are lower than top level. For instance, certain countries tend to separate the academic sector in a separately managed SLD, e.g. ac.uk of the ccTLD uk. Even if not separately managed, sometimes SLDs (or even lower level domains) tend to have a number of domains commensurable to those in the rest of the TLD. The collection of the data of all these subdomains can require a separate technical treatment, different from that of the respective TLD.

Effective TLDs are currently covered only in the ccTLD databases. In quarterly ccTLD data feeds with database versions v16 or earlier, effective TLDs were treated as separate TLDs This means:

• They have data files separate from those of their TLD,
• in the release statistics they are also separately treated,
• the “List of supported TLDs” include them, too,
• the present documentation uses the term “TLD” in the sense including these,
• the support scripts (like downloaders) treat them also as they were separate TLDs.

For instance, to get a complete list of domains in the .uk TLD from “v16” database, the files for the “TLDs”:

have separate data files which have to be downloaded and merged into the “ .uk” data.

A list of such lower-level domains can be deduced from the list of supported TLDs (in the doc/vXX.tlds text file of the release directory).

Starting with ccTLD database release v17, this distinction is eliminated: for each ccTLD, all the subdomain data are in the file belonging to their gTLD, respective of the management and other characteristics of these subdomains. The daily ccTLD feeds never had this separation of any lower-level domain. Note also that all this implies that domain listings include domains below second or even lower levels.

From the release ccTld v39 and gTld v53 on (release date: 1 September

1. the data contain records collected from the RDAP system in addition

to WHOIS. For example the ccTld v39 and gTld v53 quarterly releases contain 1,586,140 records that originate from RDAP. From the release ccTld v39 and gTld v53 on (release date: 1 September 2025) the data contain records collected from the RDAP system in addition to WHOIS. For example the ccTld v39 and gTld v53 quarterly releases contain 1,586,140 records that originate from RDAP.

The main URL of a given release (vXX, e.g. v22) is

gTLDs

ccTLDs

https://domainwhoisdatabase.com/domain_list_quarterly/vXX

(replace “vXX” by the actual release number). At this URL a plain http authentication is used. Clients having ssl-authenticated access can find the data replacing the hostname "domainwhoisdatabase.com" by "direct.domainwhoisdatabase.com" in the URL.

Clients having ftp access will find the data under the subdirectory

gTLDs

gTLDs

in their ftp home directory.

After the time of the release of a quarterly dataset it may take time for the the changes at the end of the covered time period to finally settle in the WHOIS system. Hence in some cases there are incremental updates released after the date of the release. This feature was introduced from release v22 on.

It is important to note that not all quarterly releases have such incremental updates as it is not always necessary to release such an update to reflect the status of the WHOIS system at the date of the quarterly release. Incremental updates are not to be confused with the daily updates which are provided in daily feeds. Their aim is not to keep the database up-to-date everyday but to provide all information which should be there in the quarterly release but which were technically impossible to obtain by the date of the release.

Upon the release of an update the data in the original release are updated, too. In addition to this there are diff data available in the csv/tlds_diff subdirectory in csv format which can be used to apply the changes without the need of reloading the whole dataset. When downloaded with WhoisXML API downloader scripts, they are available in the feed whois_database_update.

The details of the use of these data is described in Section 5.

The present documentation is supplemented by a file named “README.txt” in the main directory in each release as well as in the directory of incremental updates csv/tlds_diff. For gTLD releases v19-v22, the respective file is named “README_Q$ver.appendix”, e.g. “README_Q22_appendix.txt”, while for ccTLD releases v6-v8, the respective file is named “README_cctld_Q$ver.appendix”, e.g. “README_cctld_Q22_appendix.txt”. The gTLD releases before v19 and ccTLD Releases before v19 have a textual README only, in which this information is also included.

The README file contains the following information:

Data sizes.

Record counts by tld.

Directory listings.

Directory tree with file sizes.

Record count details.

The following listing contains details of unique record count by tlds and by fields. There are three important fields that we gather unique record count on:

• contactEmail,
• registrant_country and
• whoisServer.

Release statistics.

The following data are provided:

• Top 5 registrant countries,
• Top 5 WHOIS servers,
• Top 5 contact e-mails.
• Coverge statistics

The download comes in 2 formats: CSVs and Database dumps

• The files are generally compressed in .tar.gz, use the following commands/tools to uncompress:
  • on linux: tar -zxvf input.tar.gz
  • on Windows: use a software tool such as winzip, winrar
  • on Mac OS X: you may do tar -zxvf input.tar.gz or use a suitable software GUI tool.

• Some databases (for instance, those in the

  csv/tlds_combined

  or in the

  database_dump/mysqldump_combined

  subdirectories) are compressed into multipart compressed files. The parts are all numbered with a four digit serial number at the end of the file name. These files can be simply uncompressed by joining them together and sending them to the tar program for example:

  cat simple-v22.tar.gz.[0-9][0-9][0-9][0-9] | tar xzf -


  Please make sure you have all the parts downloaded and no other files with the same name pattern are present.

• The directory csv/tlds contains 3 subdirectories: simple, regular and full, each represents a version of csv-s, See Section 2.14 for the description of the formats of the csv files.

The release directory contains the present documentation in html, text and pdf formats. Besides, it contains the follwowing subdirectories:

csv

This is the directory with the csv files.

The csv/tlds subdirectory

contains 3 subdirectories, simple, regular, full, containing tar.gz archives of the respective csv files, and their md5 and sha checksums.

The csv/tlds_combined subdirectory

contains the same data organized into three multipart tar.gz archives (for simple, regular, and full) for sake of simpler downloading.

(no term)

The csv/domains subdirectory (available from releases v22 and later) :: contains gzipped csv files listing the domains only by tld, that is, text files with a domain name per line. The subdirectory has a subdirectory for each TLD. Within this subdirectory there are two types of files:

• The files

  domain_names_$version_$tld.csv.gz

  , e.g.

  domain_names_v22_aaa.csv.gz

  for the TLD “aaa” in release v22, contains the list of all domains we sourced at the beginning of our data collection procedure and attempted to get data for, with or without success. Hence there are domains in these lists for which the release contains no WHOIS data as they were unavailable.

• The files

  verified_domain_names_$version_$tld.csv.gz

  , e.g.

  verified_domain_names_v22_aaa.csv.gz

  for the TLD “aaa” in release v22, contains the list of all the domains for which there is an actual WHOIS record available in the release.

• The files

  missing_domain_names_$version_$tld.csv.gz

  , e.g.

  missing_domain_names_v35_aaa.csv.gz

  for the TLD “aaa” in release v35, contains the list of the domains that were included in the list of domains we had sourced at the beginning of the data generation procuedure, but it was found that they did not exist when their data were queried. These files are provided starting with the v35 gTLD release.

• The files

  reserved_domain_names_$version_$tld.csv.gz

  , e.g.

  reserved_domain_names_v35_com.csv.gz

  for the TLD “com” in release v35, contains the list of the domains of reserved domains of .com like, e.g., example.com or unicef.com. Consult https://www.iana.org/domains/reserved for a more detailed explanation on reserved domain names. These files are provided starting with the v35 gTLD release.

All these files have .md5 and .sha256 checksums next to them.

database_dump

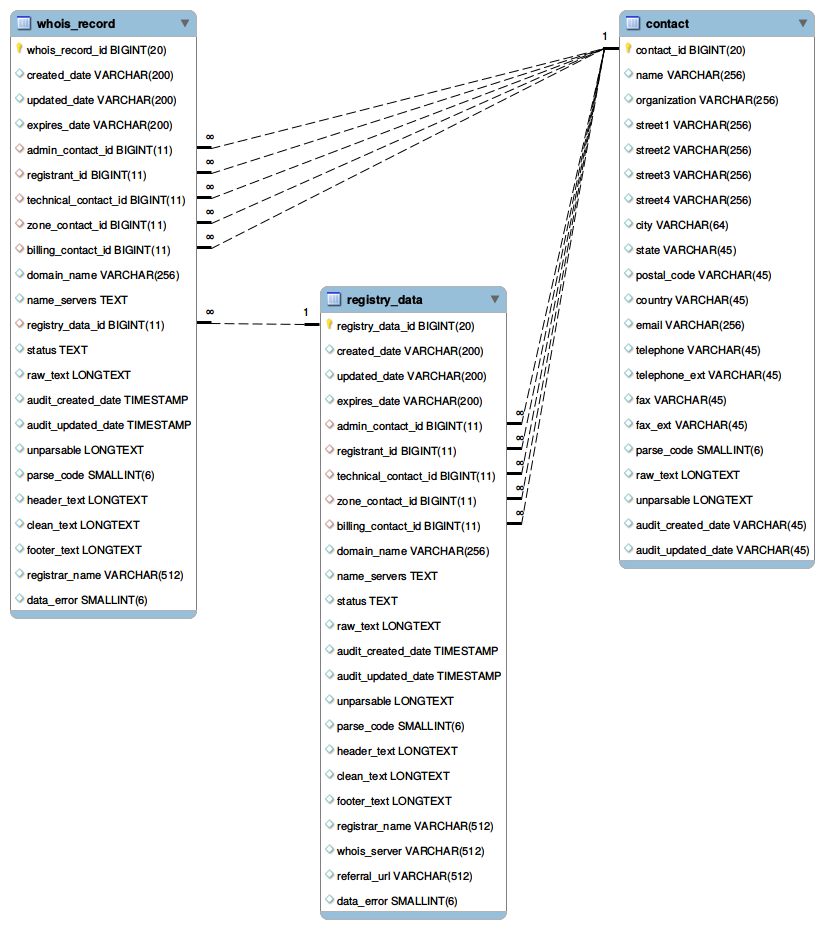

This is the directory with mysql dumps. database_dump/mysqldump contains mysqldumps, schema and their checksums grouped by tld. Table-only files can be found under the tables subdirectory of each tld subdirectory. database_dump/mysqldump_combined is a single set of files that contains data for all tlds. database_dump/perconna contains binary dumps, if you use this, the import speed is faster, but it's less portable because it only supports certain minimum versions. It is only supported for MySQL server 5.6+.

docs

This directory contains a link to the download scripts described in Section 6, the list of tlds in the release, and a brief pdf datasehet of the release.

The sample data directory of the release contains the aforementioned pdf datasheet and two subdirectories:

sample

Sample csv data in the structure of the csv/tlds subdirectory of the release.

mysqldump_sample

Sample sql dumps in the structure of the database_dump/mysqldump subdirectory of the release, without checksum files.

The data described here can be downloaded in an automated way using Python and bash scripts described in Section 6. The feeds to be specified for the scripts are:

• whois_database,
• whois_database_combined,
• whois_database_update,

and the version specification vXX should be used.

Important note: the feed whois_database_update does not exist for all the releases. These are the incremental data described in Section 5. These are not daily updates. The only case when you need to use this feed is when you have downloaded a quarterly release short after its release date, an incremental update is released (which is normally not the case) and you plan to apply it to your already loaded quarterly database.

The subdirectory docs/vXX.tlds contains the actual list of supported TLDs in each release, e.g. docs/v30.tlds for v30. It is a comma-separated list of TLD names in a single line. This can be used in support of automated download process by reading in this list and then download each set of files for the TLD.

CSV files (Comma-Separated Values) are text files whose lines are records whose fields are separated by the field separator character. Our CSV files use Unicode encoding. The line terminators may vary: some files have DOS-style CR+LF terminators, while some have Unix-style LF-s. It is recommended to check the actual file's format before use. The field separator character is a comma (“,”), and the contents of the text fields are between quotation mark characters. CSV-s are very portable.

• The files are generally compressed in .tar.gz, use the following commands/tools to uncompress
  • on Linux and other UNIX-style systems, use tar -zxvf input.tar.gz in your shell.
  • on Windows, use a software tool such as winzip, winrar
  • on Mac OS X, tar -zxvf input.tar.gz shall work in a shell, but you may also use other suitable software tools.
• There are 3 types of CSVs: simple, regualar and full.

  simple

  : these contain the following core set of data fields (without raw texts), this is the most commonly used format:

  "domainName", "registrarName", "contactEmail", "whoisServer",
  "nameServers", "createdDate", "updatedDate", "expiresDate",
  "standardRegCreatedDate", "standardRegUpdatedDate",
  "standardRegExpiresDate", "status", "Audit_auditUpdatedDate",
  "registrant_email", "registrant_name", "registrant_organization",
  "registrant_street1", "registrant_street2", "registrant_street3",
  "registrant_street4", "registrant_city", "registrant_state",
  "registrant_postalCode", "registrant_country", "registrant_fax",
  "registrant_faxExt", "registrant_telephone",
  "registrant_telephoneExt", "administrativeContact_email",
  "administrativeContact_name", "administrativeContact_organization",
  "administrativeContact_street1", "administrativeContact_street2",
  "administrativeContact_street3", "administrativeContact_street4",
  "administrativeContact_city", "administrativeContact_state",
  "administrativeContact_postalCode", "administrativeContact_country",
  "administrativeContact_fax", "administrativeContact_faxExt",
  "administrativeContact_telephone",
  "administrativeContact_telephoneExt"


  regular

  : in addition to the fields of “simple”, it contains additional fields describing the billing contact, technical contact, and zone contact. Thus the fields are as follows:

  "domainName", "registrarName", "contactEmail", "whoisServer",
   "nameServers", "createdDate", "updatedDate", "expiresDate",
   "standardRegCreatedDate", "standardRegUpdatedDate",
   "standardRegExpiresDate", "status", "RegistryData_rawText",
   "WhoisRecord_rawText", "Audit_auditUpdatedDate", "registrant_rawText",
   "registrant_email", "registrant_name", "registrant_organization",
   "registrant_street1", "registrant_street2", "registrant_street3",
   "registrant_street4", "registrant_city", "registrant_state",
   "registrant_postalCode", "registrant_country", "registrant_fax",
   "registrant_faxExt", "registrant_telephone", "registrant_telephoneExt",
   "administrativeContact_rawText", "administrativeContact_email",
   "administrativeContact_name", "administrativeContact_organization",
   "administrativeContact_street1", "administrativeContact_street2",
   "administrativeContact_street3", "administrativeContact_street4",
   "administrativeContact_city", "administrativeContact_state",
   "administrativeContact_postalCode", "administrativeContact_country",
   "administrativeContact_fax", "administrativeContact_faxExt",
   "administrativeContact_telephone", "administrativeContact_telephoneExt",
   "billingContact_rawText", "billingContact_email", "billingContact_name",
   "billingContact_organization", "billingContact_street1",
   "billingContact_street2", "billingContact_street3",
   "billingContact_street4", "billingContact_city", "billingContact_state",
   "billingContact_postalCode", "billingContact_country",
   "billingContact_fax", "billingContact_faxExt",
   "billingContact_telephone", "billingContact_telephoneExt",
   "technicalContact_rawText", "technicalContact_email",
   "technicalContact_name", "technicalContact_organization",
   "technicalContact_street1", "technicalContact_street2",
   "technicalContact_street3", "technicalContact_street4",
   "technicalContact_city", "technicalContact_state",
   "technicalContact_postalCode", "technicalContact_country",
   "technicalContact_fax", "technicalContact_faxExt",
   "technicalContact_telephone", "technicalContact_telephoneExt",
   "zoneContact_rawText", "zoneContact_email", "zoneContact_name",
   "zoneContact_organization", "zoneContact_street1", "zoneContact_street2",
   "zoneContact_street3", "zoneContact_street4", "zoneContact_city",
   "zoneContact_state", "zoneContact_postalCode", "zoneContact_country",
   "zoneContact_fax", "zoneContact_faxExt", "zoneContact_telephone",
   "zoneContact_telephoneExt","registarIANAID"


  full:

  in addition to the fields of the simple format, these contain 2 additional fields:

  • RegistryData_rawText: raw text from the whois registry
  • WhoisRecord_rawText: raw text from the whois registrar

  The full data fields are shown in the following lines:

  "domainName", "registrarName", "contactEmail", "whoisServer",
  "nameServers", "createdDate", "updatedDate", "expiresDate",
  "standardRegCreatedDate", "standardRegUpdatedDate",
  "standardRegExpiresDate", "status", "RegistryData_rawText",
  "WhoisRecord_rawText", "Audit_auditUpdatedDate", "registrant_rawText",
  "registrant_email", "registrant_name", "registrant_organization",
  "registrant_street1", "registrant_street2", "registrant_street3",
  "registrant_street4", "registrant_city", "registrant_state",
  "registrant_postalCode", "registrant_country", "registrant_fax",
  "registrant_faxExt", "registrant_telephone", "registrant_telephoneExt",
  "administrativeContact_rawText", "administrativeContact_email",
  "administrativeContact_name", "administrativeContact_organization",
  "administrativeContact_street1", "administrativeContact_street2",
  "administrativeContact_street3", "administrativeContact_street4",
  "administrativeContact_city", "administrativeContact_state",
  "administrativeContact_postalCode", "administrativeContact_country",
  "administrativeContact_fax", "administrativeContact_faxExt",
  "administrativeContact_telephone", "administrativeContact_telephoneExt",
  "billingContact_rawText", "billingContact_email", "billingContact_name",
  "billingContact_organization", "billingContact_street1",
  "billingContact_street2", "billingContact_street3",
  "billingContact_street4", "billingContact_city", "billingContact_state",
  "billingContact_postalCode", "billingContact_country",
  "billingContact_fax", "billingContact_faxExt",
  "billingContact_telephone", "billingContact_telephoneExt",
  "technicalContact_rawText", "technicalContact_email",
  "technicalContact_name", "technicalContact_organization",
  "technicalContact_street1", "technicalContact_street2",
  "technicalContact_street3", "technicalContact_street4",
  "technicalContact_city", "technicalContact_state",
  "technicalContact_postalCode", "technicalContact_country",
  "technicalContact_fax", "technicalContact_faxExt",
  "technicalContact_telephone", "technicalContact_telephoneExt",
  "zoneContact_rawText", "zoneContact_email", "zoneContact_name",
  "zoneContact_organization", "zoneContact_street1", "zoneContact_street2",
  "zoneContact_street3", "zoneContact_street4", "zoneContact_city",
  "zoneContact_state", "zoneContact_postalCode", "zoneContact_country",
  "zoneContact_fax", "zoneContact_faxExt", "zoneContact_telephone",
  "zoneContact_telephoneExt","registarIANAID"


The csv data fields are mostly self-explanatory by name except for the following:

createdDate:

when the domain name was first registered/created

updatedDate

when the whois data were updated

expiresDate

when the domain name will expire

standardRegCreatedDate

created date in the standard format (YYYY-mm-dd), e.g. 2012-02-01

standardRegUpdatedDate

updated date in the standard format (YYYY-mm-dd), e.g. 2012-02-01

standardRegExpiresDate

expires date in the standard format (YYYY-mm-dd), e.g. 2012-02-01

Audit_auditUpdatedDate

the timestamp of when the whois record is collected in the standardFormat (YYYY-mm-dd), e.g. 2012-02-01

status

domain name status code; see
https://www.icann.org/resources/pages/epp-status-codes-2014-06-16-en
for details

registrant

The domain name registrant is the owner of the domain name. They are the ones who are responsible for keeping the entire WHOIS contact information up to date.

administrativeContact

The administrative contact is the person in charge of the administrative dealings pertaining to the company owning the domain name.

billingContact

the billing contact is the individual who is authorized by the registrant to receive the invoice for domain name registration and domain name renewal fees.

technicalContact

The technical contact is the person in charge of all technical questions regarding a particular domain name.

zoneContact

The domain technical/zone contact is the person who tends to the technical aspects of maintaining the domain's name server and resolver software, and database files.

registrarIANAID

The IANA ID of the registrar. Consult
https://www.iana.org/assignments/registrar-ids/registrar-ids.xhtml
to resolve IANA ID-s.

domainName: 256, registrarName: 512,  contactEmail: 256,
whoisServer: 512, nameServers: 256, createdDate: 200,
updatedDate: 200, expiresDate: 200, standardRegCreatedDate: 200,
standardRegUpdatedDate: 200, standardRegExpiresDate: 200,
status: 65535, Audit_auditUpdatedDate: 19, registrant_email: 256,
registrant_name: 256, registrant_organization: 256,
registrant_street1: 256, registrant_street2: 256,
registrant_street3: 256, registrant_street4: 256,
registrant_city: 64, registrant_state: 256, registrant_postalCode: 45,
registrant_country: 45, registrant_fax: 45, registrant_faxExt: 45,
registrant_telephone: 45, registrant_telephoneExt: 45,
administrativeContact_email: 256, administrativeContact_name: 256,
administrativeContact_organization: 256, administrativeContact_street1: 256,
administrativeContact_street2: 256, administrativeContact_street3: 256,
administrativeContact_street4: 256, administrativeContact_city: 64,
administrativeContact_state: 256, administrativeContact_postalCode: 45,
administrativeContact_country: 45, administrativeContact_fax: 45,
administrativeContact_faxExt: 45, administrativeContact_telephone: 45,
administrativeContact_telephoneExt: 45, registarIANAID: 65535

The [contact]_country fields are standardized. The possible values are listed in the first column of the file

The possible country names are in the first column of this file; the field separator character is “|”.

Below is a detailed comparison of the fields that are present different version of the csv files(simple, regular and full). The leftmost column reflects the fields of the MySQL schema.

Note: in the case of csv formats, registry WHOIS records are only available as raw text in the "full" csv files.

Disk space

at least one single 2 TB partition is required to store mysql data file once it's loaded into mysql server

Memory

at least 16 GB of RAM

The server that collects the whois database has the following spec, it's recommended that your server is comparable to our server:

• Core i7 Quad Core i7-2600 3.4 GHz
• 16 GB DDR3-1333 UDIMM
• First Hard Drive: 2 TB SATA HDD (7200 RPM)
• Second Hard Drive: 2 TB SATA HDD (7200 RPM)

• Mysql server 5.1+ is recommended although it should work for versions of mysql-server lower than 5.1
• Mysql server 5.6+ is required for importing through binary files

Using mysqldump is a portable way to import the database.

Due to the large database size especially for .com, it is recommended to use load schema first, then load data for each table separately. The bash scripts under the subdirectory mysql/ can be used as a starting point to help with loading mysqldump files incrementally. It is also recommended to test the load procedure on a small sample dataset first before loading the complete dataset.

This Section does not apply to all the database releases, as the binary dumps were not found useful in some cases. E.g. for the gTLD release v23 there are no binary dumps provided. So read this only if the subdirectory database_dump/percona directory exists in the release you are using.

Using mysql binary files is a fast way to import the database although a less portable one. It's only supported for mysql server 5.6+.

The following diagram shows the structure of the three relevant tables.

The detailed description of the tables is the following:

Table: whois_record

Fields:

whois_record_id

BIGINT(20) PRIMARY KEY NOT NULL Primary key of whois_record.

created_date

VARCHAR(200) When the domain name was first registered/created.

updated_date

VARCHAR(200) When the whois data was updated.

expires_date

VARCHAR(200) When the domain name will expire.

admin_contact_id

BIGINT(20) FOREIGN KEY Foreign key representing the id of the adminstrative contact for this whois_record. It references the primary key in contact table. The administrative contact is person in charge of the administrative dealings pertaining to the company of the domain name.

registrant_id

BIGINT(20) FOREIGN KEY Foreign key representing the id of the registrant for this whois_record. It references the primary key in contact table. The domain name registrant is the owner of the domain name. They are the ones who are responsible for keeping the entire WHOIS contact information up to date.

technical_contact_id

BIGINT(20) FOREIGN KEY Foreign key representing the id of the technical contact for this whois_record. It references the primary key in contact table. The technical contact is the person in charge of all technical questions regarding a particular domain name.

zone_contact_id

BIGINT(20) FOREIGN KEY Foreign key representing the id of the zone contact for this whois_record. is the person who tends to the technical aspects of maintaining the domain's name server and resolver software, and database files.

billing_contact_id

BIGINT(20) FOREIGN KEY Foreign key representing the id of the billing contact for this whois_record. It references the primary key in contact table. the billing contact is the individual who is authorized by the registrant to receive the invoice for domain name registration and domain name renewal fees.

domain_name

VARCHAR(256) FOREIGN KEY Domain Name

name_servers

TEXT Name servers or DNS servers for the domain name. The most important function of DNS servers is the translation (resolution) of human-memorable domain names and hostnames into the corresponding numeric Internet Protocol (IP) addresses.

registry_data_id

BIGINT(20) FOREIGN KEY Foreign key representing the id of the registry data. It references the primary key in registry_data table. Registry Data is typically a whois record from a domain name registry. Each domain name has potentially up to 2 whois record, one from the registry and one from the registrar. Whois_record(this table) represents the datafrom the registrar and registry_data represents whois data collected from the whois registry. Note that registryData and WhoisRecord has almost identical data structures. Certain gtlds(eg. most of.com and .net) have both types of whois data while most cctlds have only registryData. Hence it's recommended to look under both WhoisRecord and registryData when searching for a piece of information(eg. registrant, createdDate).

status

TEXT domain name status code; see details at https://www.icann.org/resources/pages/epp-status-codes-2014-06-16-en

raw_text

LONGTEXT the complete raw text of the whois record

audit_created_date

TIMESTAMP FOREIGN KEY the date this whois record is collected on whoisxmlapi.com, note this is different from WhoisRecord → createdDate or WhoisRecord → registryData → createdDate

audit_updated_date

TIMESTAMP FOREIGN KEY the date this whois record is updated on whoismlxapi.com, note this is different from WhoisRecord → updatedDate or WhoisRecord → registryData → updatedDate

unparsable

LONGTEXT the part of the raw text that is not parsable by our whois parser

parse_code

SMALLINT(6) a bitmask indicating which fields are parsed in this whois record. A binary value of 1 at index i represents a non empty value field at that index. The fields that this parse code bitmask represents are, from the least significant to most significant bit in this order: createdDate, expiresDate, referralURL(exists in registryData only), registrarName, status, updatedDate, whoisServer(exists in registryData only), nameServers, administrativeContact, billingContact, registrant, technicalContact, and zoneContact. For example, a parseCode of 3 (binary: 11) means that the only non-empty fields are createdDate and expiresDate. a parseCode of 8(binary:1000) means that the only non-empty field is registrarName. Note: the fields represented by the parseCode do not represent all fields exist in the whois record.

header_text

LONGTEXT the header of the whois record is part of the raw text up until the first identifiable field.

clean_text

LONGTEXT the stripped text of the whois record includes part of the raw excluding header and footer, this should only include identifiable fields.

footer_text

LONGTEXT the footer of the whois record is part of the raw after the last identifiable field.

registrar_name

VARCHAR(512) A domain name registrar is an organization or commercial entity that manages the reservation of Internet domain names.

data_error

SMALLINT(6) FOREIGN KEY an integer with the following meaning: 0=no data error 1=incomplete data; 2=missing whois data, it means that the domain name has no whois record in the registrar/registry 3=this domain name is a reserved word

Table: registry_data

Fields:

registry_data_id

BIGINT(20) PRIMARY KEY NOT NULL

created_date

VARCHAR(200)

updated_date

VARCHAR(200)

expires_date

VARCHAR(200)

admin_contact_id

BIGINT(20) FOREIGN KEY

registrant_id

BIGINT(20) FOREIGN KEY

technical_contact_id

BIGINT(20) FOREIGN KEY

zone_contact_id

BIGINT(20) FOREIGN KEY

billing_contact_id

BIGINT(20) FOREIGN KEY

domain_name

VARCHAR(256) FOREIGN KEY

name_servers

TEXT

status

TEXT

raw_text

LONGTEXT

audit_created_date

TIMESTAMP

audit_updated_date

TIMESTAMP FOREIGN KEY

unparsable

LONGTEXT

parse_code

SMALLINT(6)

header_text

LONGTEXT

clean_text

LONGTEXT

footer_text

LONGTEXT

registrar_name

VARCHAR(512)

whois_server

VARCHAR(512)

referral_url

VARCHAR(512)

data_error

SMALLINT(6) FOREIGN KEY

Table: contact

Fields:

contact_id

BIGINT(20) PRIMARY KEY NOT NULL

name

VARCHAR(512)

organization

VARCHAR(512)

street1

VARCHAR(256)

street2

VARCHAR(256)

street3

VARCHAR(256)

street4

VARCHAR(256)

city

VARCHAR(256)

state

VARCHAR(256)

postal_code

VARCHAR(45)

country

VARCHAR(45)

email

VARCHAR(256)

telephone

VARCHAR(128)

telephone_ext

VARCHAR(128)

fax

VARCHAR(128)

fax_ext

VARCHAR(128)

parse_code

SMALLINT(6)

raw_text

LONGTEXT

unparsable

LONGTEXT

audit_created_date

VARCHAR(45)

audit_updated_date

VARCHAR(45) FOREIGN KEY

There can be many approaches for creating and maintaining a MySQL domain WHOIS database depending on the goal. In some cases the task is cumbersome as we are dealing with big data. Our client-slide scripts are provied as samples to help our clients to set up a suitable solution; they can be used as they are in many cases. All of them come with a detailed documentation.

Some of our blogs can be also good reads with this respect, for instance, this one:

As WHOIS data come from very diverse sources with different policies and practices, their quality vary by nature. The data accuracy is strongly effected by data protection regulations, notably the GDPR of the European Union. Thus the question frequently arises: how to check the quality of a WHOIS record. In general, an assessment can be done in based on the following principles.

To decide if a record is acceptable at all, we recommend to check the following aspects:

• If the “createdDate”, “updatedDate”, or “expiresDate” fields are empty (and so are their version with their “standard” prefix), the record is invalid. These data are typically there even in the most GDPR-affected WHOIS records.
• If the "registrarName" field is empty, the record is invalid, except for some TLDs (typically ccTLDs) where the WHOIS server does not provide registrar information.

If these criteria are met, the record can be considered as valid in principle. Yet its quality is still in a broad range. To further assess the quality, the typical approaches

• The number of non-empty fields (the larger the better).
• The number of redacted fields. A field containing the word "redacted" with various capitalizations (e.g. also “Redacted” or “REDACTED”). The smaller the number of such fields, the better is the record.
• Check some fields relevant in the particular application. E.g. “registrant_name”, certain e-mail addresses are non-empty or can be validated (e.g. valid e-mail).

In what follows we describe how to check these aspects in case of the different download formats.

In case of csv files the file has to be read and parsed. Then the empty or redacted fields can be identified, while the non-empty fields can possibly be validated against the respective criteria.

The WHOIS databases recovered from MySQL dumps contain a field named “parseCode”, which makes the quality check more efficient. (It is not present in the csv files.) It is a bit mask indicating which fields have been parsed in the record; a binary value of 1 at position i points to a non-empty value field at that position.

The fields from the least significant bit to the most significant one are following: "createdDate", "expiresDate", "referralURL" (exists in "registryData" only), "registrarName", "status", "updatedDate", "whoisServer" (exists in "registryData" only), "nameServers", "administrativeContact", "billingContact", "registrant", "technicalContact", and "zoneContact". For example, a parse code 310=(11_{2}) means that the only non-empty fields are "createdDate" and "expiresDate", whereas the parse code 810=(1000_{2}) means that the only non-empty field is "registrarName".

If you need to ascertain that a WHOIS record contains ownership information, calculate the binary AND of the parse code and 0010000000000_{2}=512_{10} it should be 512. (The mask stands for the non-empty field “registrant”).

You can use any software which supports the standard ftp protocol. On most systems there is a command-line ftp client. As a GUI client we recommend FileZilla (https://filezilla-project.org, which is a free, cross-platform solution. Thus it is available for most common OS environments, including Windows, Mac OS X, Linux and BSD variants.

Quarterly WHOIS data are provided via the ftp server

The quarterly releases that are available to you within your subscription plan will be under the directory quarterly_gtld and quarterly_cctld, respectively, in a subdirectory named after the release version.

In order to use our ftp service to download quarterly WHOIS data, you need to ensure that the following ports 21, 2121, and 2200 are open on both TCP and UDP on your firewall for ftp.domainwhoisdatabase.com.

If the respective ports are not open, you will encounter either of the following behaviors: You cannot access the respective server. You can access the respective server, but after login, you can't even get the directory listing, it runs onto timeout. If you encounter any of these problems, please revise your firewall settings.
